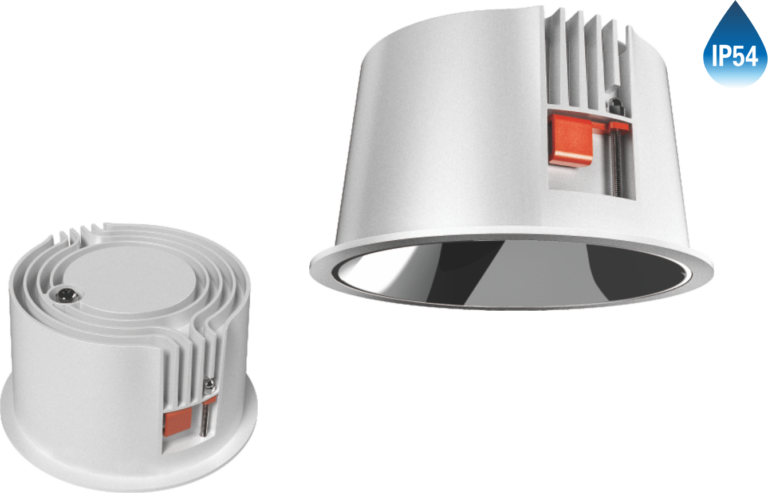

Deep LED Down Light
10W/15W/18W/23W
3/4/6/8 inch
| Product number： | DP090S – 14W |
| Track System: | 220-240V~ |
| Dimming: | On/Off，TRIAC，1-10V，DALI |
| Light source: | SMD3014 LED |
| luminaire Lifetime： | 50.000h（L80B50, Ta25°C） |
| IP Rating: | 20 |
| Working Temperature (°C) | -5 ~ +30 |
| Material: | Aluminium |
| Fitting Colors: | Sandy White |
Products
Information
| Product number： | DP090S – 14W |
| Track System: | 220-240V~ |
| Dimming: | On/Off，TRIAC，1-10V，DALI |
| Light source: | COB LED |
| luminaire Lifetime： | 50.000h（L80B50, Ta25°C） |
| IP Rating: | 54 |
| Working Temperature (°C) | -5 ~ +30 |
| Material: | Aluminium |
| Fitting Colors: | Sandy White / Sandy Black |
Packaging
information
| N.W. lamp (Kg): | 0.44 |
| G.W. Carton (Kg): | 11.6 |
| Master carton dimensions(mm): | 465x295x288 |
| Quantity per carton: | 24 |
System
overview
| Beam | Watt | CRI | Luminous | CCT | Code |
18 |
14W | 90 | 1148 lm | 4000K | DP090S-14G40-S01 |
| 1115 lm | 3000K | DP090S-14G30-S01 | |||
| 1059 lm | 2700K | DP090S-14G27-S01 | |||
24 |
14W | 90 | 1224 lm | 4000K | DP090S-14G40-M01 |
| 1189 lm | 3000K | DP090S-14G30-M01 | |||
| 1129 lm | 2700K | DP090S-14G27-M01 | |||
38 |
14W | 90 | 1218 lm | 4000K | DP090S-14G40-F01 |
| 1183 lm | 3000K | DP090S-14G30-F01 | |||
| 1123 lm | 2700K | DP090S-14G27-F01 | |||
56 |
14W | 90 | 1289 lm | 4000K | DP090S1-14G40-WF0 |
| 1252 lm | 3000K | DP090S-14G30-WF01 | |||
| 1189 lm | 2700K | DP090S-14G27-WF01 |
Download
Illuminance
| Beam | Watt | CRI | Luminous | CCT | Code |
| 18 |
14W | 90 | 1148 lm | 4000K | DP090S-14G40-S01 |
| 1115 lm | 3000K | DP090S-14G30-S01 | |||
| 1059 lm | 2700K | DP090S-14G27-S01 | |||
| 24 |
14W | 90 | 1224 lm | 4000K | DP090S-14G40-M01 |
| 1189 lm | 3000K | DP090S-14G30-M01 | |||
| 1129 lm | 2700K | DP090S-14G27-M01 | |||
| 38 |
14W | 90 | 1218 lm | 4000K | DP090S-14G40-F01 |
| 1183 lm | 3000K | DP090S-14G30-F01 | |||
| 1123 lm | 2700K | DP090S-14G27-F01 | |||
| 56 |
14W | 90 | 1289 lm | 4000K | DP090S1-14G40-WF0 |
| 1252 lm | 3000K | DP090S-14G30-WF01 | |||
| 1189 lm | 2700K | DP090S-14G27-WF01 |
