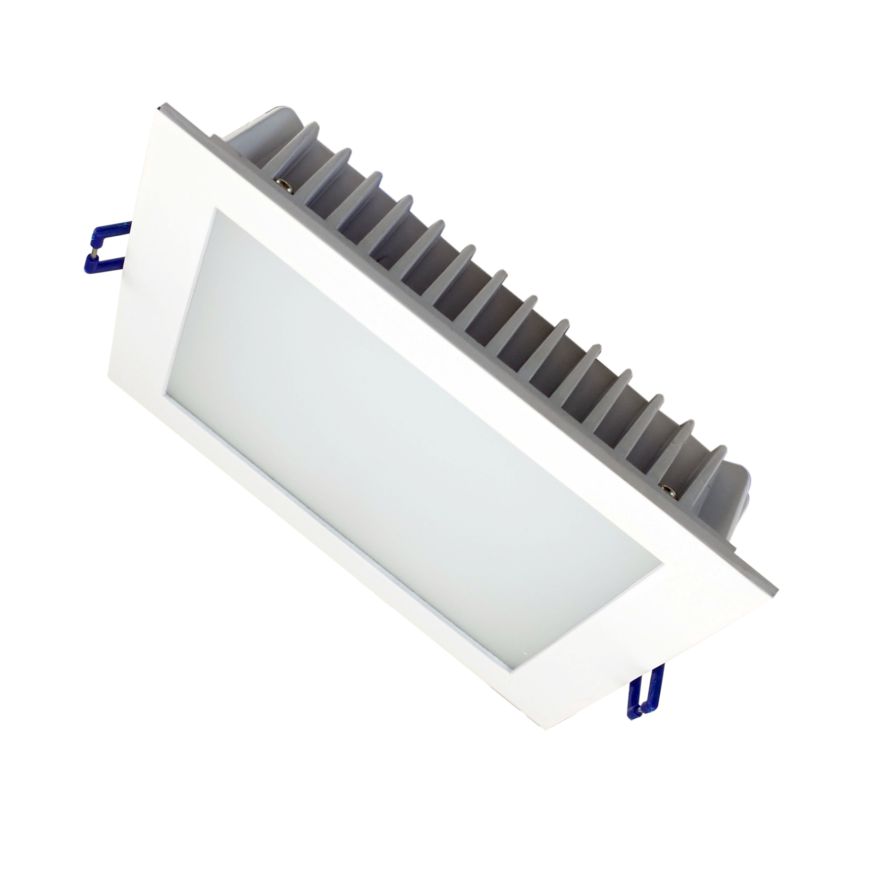

Flat® Recessed LED Downlight

 Flat® Square 230 23W /2300lm@4000K/Ra90

Our Flat® series LED downlights offer sleek elegance and versatility for any space. With a slim 230mm Square design and 23W power, they're perfect for low ceilings. Featuring a high CRI>90, they ensure true-to-life lighting for seamless recessed installations.

Products Information

  • Products Name: lat® Square 230 23W /2300lm@4000K/Ra90
  • Part No.: RDL230E23W
  • Power:8W
  • Installation method:Recessed
  • Cut out:Ø95-100mm
  • Dimming:Non-DIM 、TRIAC 、0/1-10V、DALI
  • Frequency:50/60HZ
  • Lumen:>100lm/w
  • CCT:3000K/4000K/5000K
  • CRI:≥90
  • SDCM:<4
  • Adjustibility:-
  • Light distribution:Direct
  • Beam angle:100°
  • Protection class:IP20
  • Material:Aluminum
  • Environment temperature:-20°C~40°C
  • LED life Time:  35,000h~ 50,000h – L80


Package Information

  • N.W. lamp : 0.44Kg
  • G.W. Carton : 11.6Kg
  • Master carton dimensions: 465x295x288mm
  • Quantity per carton: 24 Pcs
