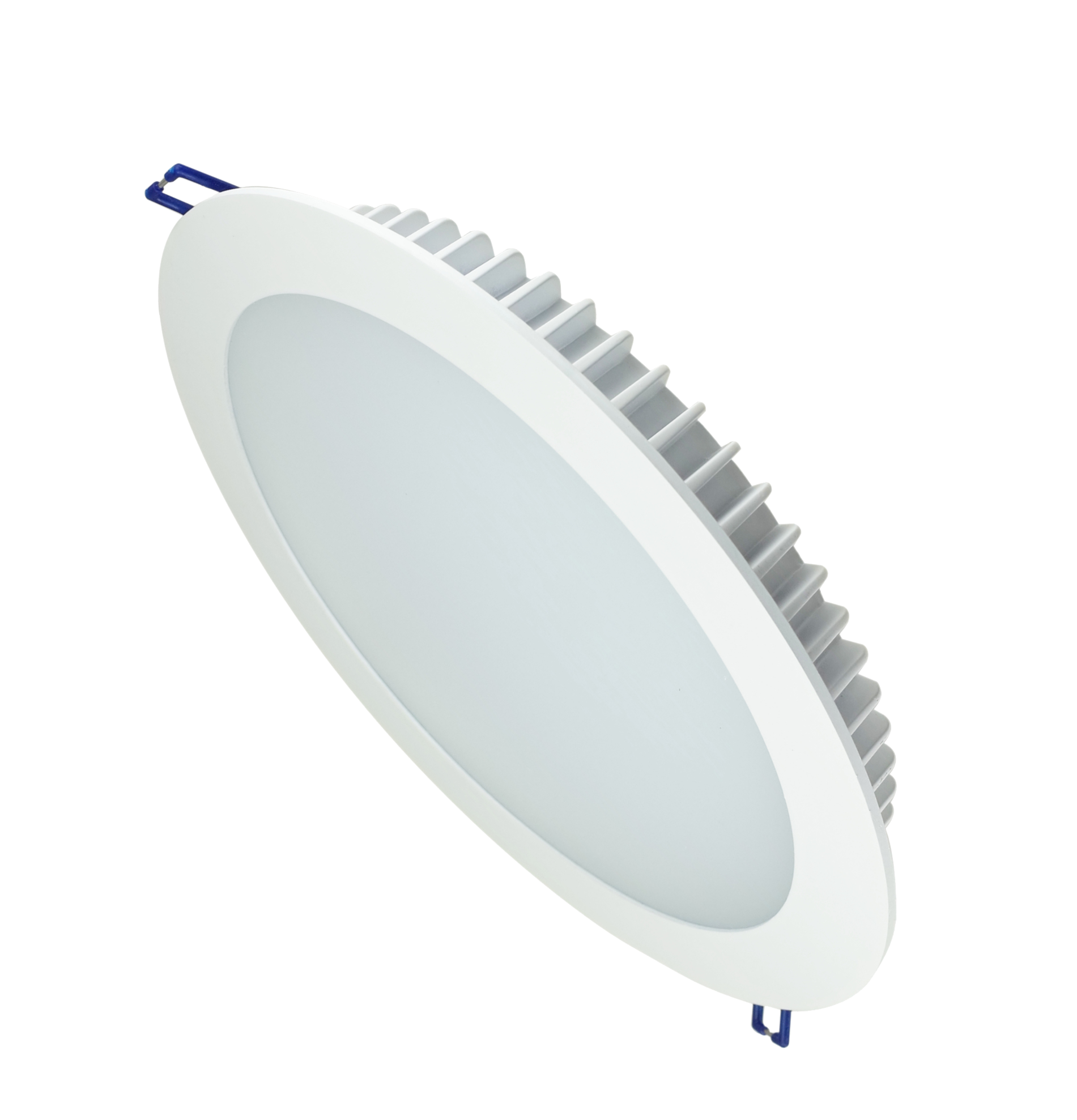

Ultra Slim LED Downlight
Our Direct-to-Ceiling (DtC) Round Slim 2700K LED Downlight line is true to its name with its ultra-slim trim that sits near-flush to the ceiling. It is dimmable and equipped with edge-lit technology for low glare and a uniform lit appearance. Ideal for residential use and light commercial use, this 3″ round downlight features simple snap-in installation for improved job site efficiency. A tethered driver eliminates the need for a junction box, providing placement flexibility despite structural support.
Slim LED Down Light Series
| Model No: |
SL-RDL Series
|
| Power(W): |
|
| Input Voltage (v): |
AC220-240V
|
| Dimming: |
On/Off，TRIAC，DALI
|
| Light source: |
SMD LED
|
| luminaire Lifetime: |
50.000h（L80-B10, Ta25°C）
|
|
Beam Angle(degree):
|
90° |
|
Dimension (mm):
|
φ110, φ125, φ160, φ180, φ230 |
|
IP Rating:
|
20 |
|
Working Temperature (°C):
|
-5 ~ +30
|
|
Storage Temperature (°C):
|
-20 ~ +50
|
|
Material:
|
Aluminium
|
|
Fitting Colors:
|
9016 Sandy White
|
Product Feature
Quality SMD chip, high luminous efficiency, with excellent color consistency and high CRI.
Lifespan is up to 30,000 hours.High lumen SMD LED chip with excellent color consistency.
The objects can be clearly displayed with LED Chips of high CRI, and this provides people with wonderful visual enjoyment
Parameter
| model: | SL-RDL110E08W | SL-RDL125E11W | SL-RDL160E15W | SL-RDL180E18W | SL-RDL230E23W | |
| Related Power | 8W | 11W | 15W | 18W | 23W | |
| Driver Current(mA) | 350mA | 350mA | 350mA | 350mA | 350mA | |
| Size(mm) | φ110*24mm | φ125*25mm | φ160*26mm | φ180*27mm | φ230*28mm | |
| Luminous flux | 3000K | 785lm | 909lm | 1420lm | 1666lm | 2120lm |
| 4000K | 809lm | 1068lm | 1068lm | 1720lm | 2135lm | |
| 5000K | 821lm | 1123lm | 1123lm | 1809lm | 2248lm | |
| Cutting Size(mm) | φ95mm | φ110mm | φ140mm | φ160mm | φ180mm | |

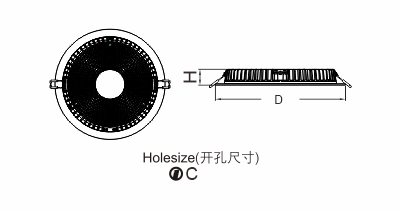

Drawing
| RDL110E08W | RDL125E11W | RDL160E15W | RDL180E18W | RDL230E23W | |
| D | 110mm | 125mm | 160mm | 180mm | 230mm |
| H | 23mm | 24mm | 25mm | 27mm | 28mm |
| C | 95mm | 100mm | 140mm | 160mm | 180mm |
| Model # | RDL110 | RDL125 | RDL160 | RDL230 |
|---|---|---|---|---|
| Related Power | 10W | 15W | 18W | 23W |
| LED Driver Current(mA) | 200mA | 350mA | ||
| Input Voltages(V) | AC220V | |||
| Power Factor & THD | ||||
| Drawing | ||||
| Cutting Size |
